https://trivenipackaging.com/products-details/belmixing-bowl-lift-1050-scale-depositor/ Belmixing-bowl-lift 1050 Scale Depositor

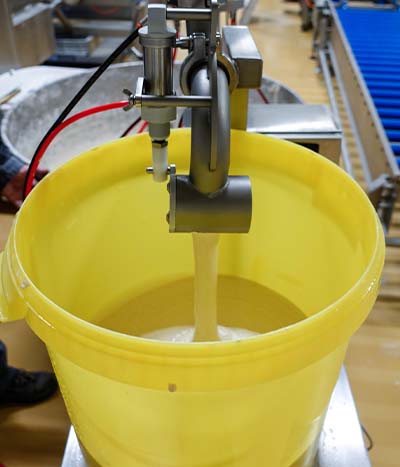

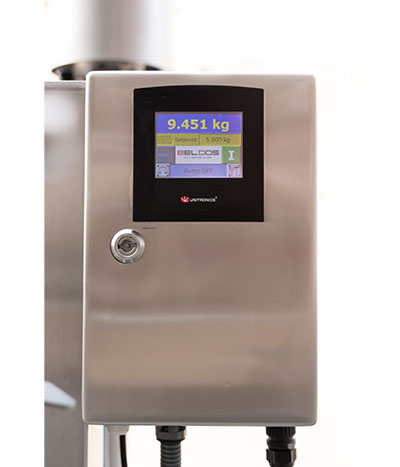

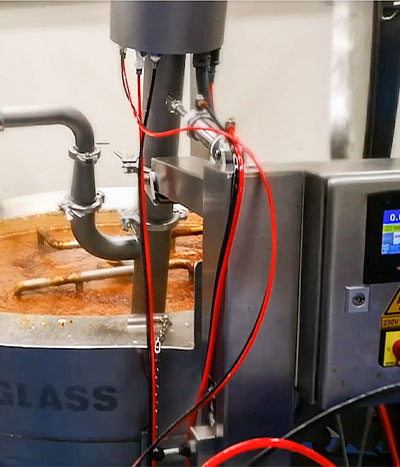

The Beldos Belmixing-bowl-lift 1050 Scale combines a mixing-bowl depositor with a weighing scale. The operator enters the target weight on the digital panel and starts dosing, up to a 50 kg setting. A pneumatic lift on the mobile frame makes changing bowls and buckets quick.
Key features
- Dosing principle: by weight, set on digital panel
- Maximum weight setting: 50 kg
- Product feed: directly from mixing bowl or bucket
- Frame: mobile, pneumatically height-adjustable for bowl changes
- Construction: stainless steel
Applications
For filling large containers, buckets or trays to a target weight rather than a volume. Typical products: cake batter, muffins, jam, jelly, fruit filling, cream, mousse, yoghurt, sauces and soup.
Technical specifications
| Belmixing-bowl-lift 1050 Scale | |
|---|---|
| Dosing | By weight, up to 50 kg setting |
| Flow rate | 10 to 65 l/min |
| Air consumption | 158 l/min at 30 deposits/min |
| Air pressure | 7 bar / 102 PSI |
| Electricity | 100 to 240 VAC, 1 phase, 50/60 Hz, 30 W |
| Material | Stainless steel |
Brochure and detailed technical data sheet: available on request. Contact our team or use Get a Quote below.
