https://trivenipackaging.com/products-details/bellift-depositor/ Bellift Depositor / Filling Machine
The Beldos Bellift is a volumetric stainless steel depositor on a mobile frame with a pneumatic lift. The working height is adjusted pneumatically, and the hopper drops to its lowest position for easy filling and cleaning. It runs on compressed air only and deposits up to 120 portions per minute.
Key features
- Dosing principle: volumetric piston
- Frame: mobile, pneumatically height-adjustable
- Hopper access: fill and clean in lowest position
- Drive: pneumatic, no electricity required
- Construction: stainless steel
- Functions: depositing, injecting, decorating
Applications

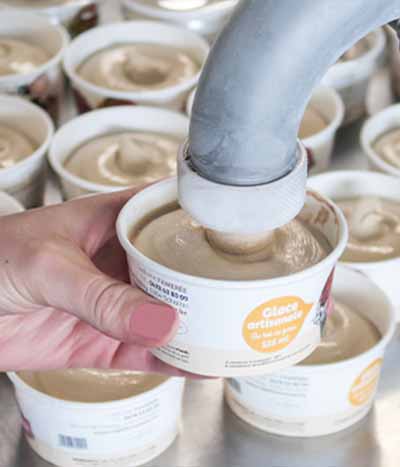

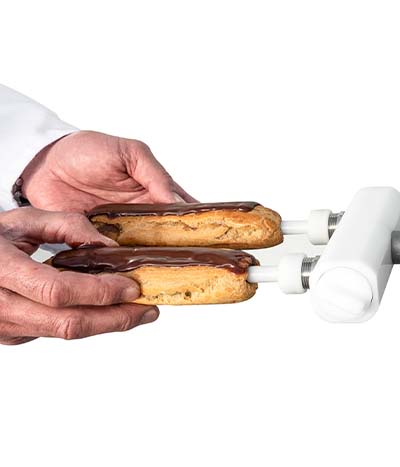

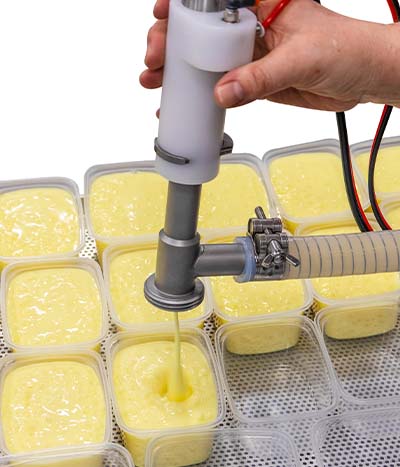

The step up from the Belvario for production teams that change working height often or handle heavy hopper loads. Typical products: cake batter, muffins, jam, jelly, fruit filling, cream, mousse, meringue, ice cream, yoghurt, soup, sauces, mashed potato, minced meat and salads. Also injects éclairs, Berliners and profiteroles.
Technical specifications
| Bellift 275 | Bellift 670 | Bellift 1340 | |
|---|---|---|---|
| Deposit range | 5 to 275 ml | 5 to 670 ml | 5 to 1,340 ml |
| Speed | Up to 120 deposits/min | Up to 120 deposits/min | Up to 120 deposits/min |
| Hopper | 18, 25 or 60 l | 18, 25 or 60 l | 18, 25 or 60 l |
| Air consumption | 29 l/min at 30 deposits/min | 121 l/min at 30 deposits/min | 219 l/min at 30 deposits/min |
| Air pressure | 7 bar / 102 PSI | 7 bar / 102 PSI | 7 bar / 102 PSI |
| Electricity | Not required | Not required | Not required |
| Material | Stainless steel | Stainless steel | Stainless steel |
Brochure and detailed technical data sheet: available on request. Contact our team or use Get a Quote below.
