https://trivenipackaging.com/products-details/bellift-accu-670-depositor/ Bellift ACCU 670 Depositor / Filling Machine
The Beldos Bellift ACCU 670 is a volumetric stainless steel depositor on a mobile frame with electric height adjustment. The hopper lowers for easy filling and cleaning. Dosing is pneumatic, with portions from 5 ml to 670 ml at up to 120 deposits per minute.
Key features
- Dosing principle: volumetric piston, pneumatic
- Frame: mobile, electrically height-adjustable
- Hopper access: fill and clean in lowest position
- Construction: stainless steel
- Functions: depositing, injecting, decorating
Applications

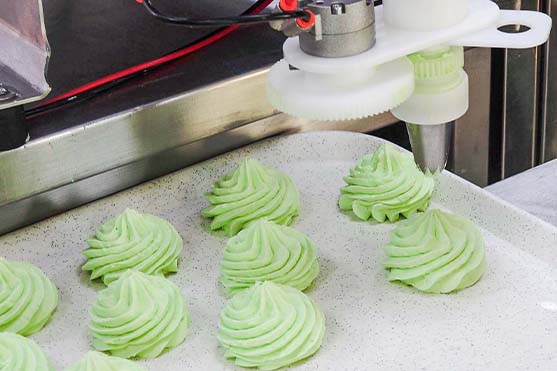

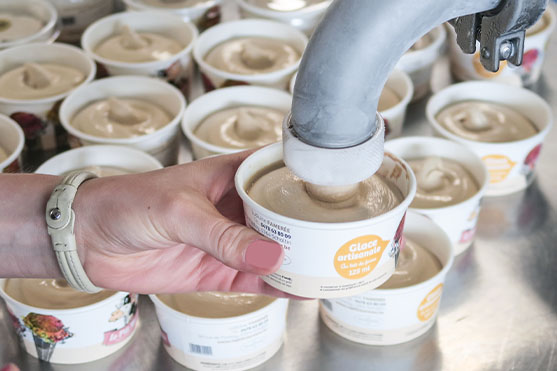

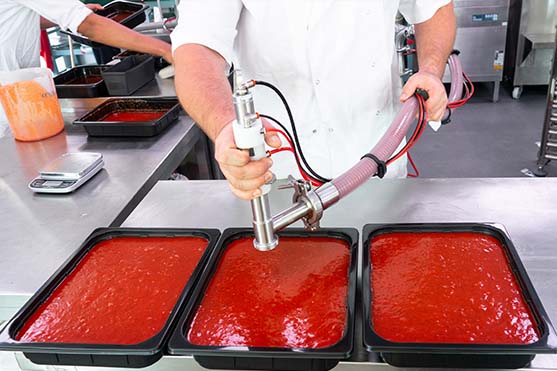

For operations that want height changes without manual effort or a pneumatic lift. Typical products: cake batter, muffins, jam, jelly, fruit filling, cream, mousse, meringue, ice cream, yoghurt, soup, sauces, mashed potato, minced meat and salads. Also injects éclairs, Berliners and profiteroles.
Technical specifications
| Bellift ACCU 670 | |
|---|---|
| Deposit range | 5 to 670 ml |
| Speed | Up to 120 deposits/min |
| Hopper | 18, 25 or 60 l |
| Air consumption | 121 l/min at 30 deposits/min |
| Air pressure | 7 bar / 102 PSI |
| Material | Stainless steel |
| Lift power supply | 230 V, 1 phase, 50 Hz (UAE standard); other supplies to customer specification |
Brochure and detailed technical data sheet: available on request. Contact our team or use Get a Quote below.
